General Ball Bearing Slide with Width 17mm Loading Capacity 12kgs
Product information:
Main material: Cold-Rolled Steel
Length: 8-18"
Width: 17mm
Material thickness: 0.8/1.0*0.8/1.0mm
Loading capacity: 12kgs
Installation method: Side installation 9.5+0.2mm
Finish: Blue/Color/Black Zinc Plated
Recommended application:
1. Any application requiring 12kgs load or less & requiring 3/4 extention
2. Desk drawer
3. Ordinary furniture
4. Light-loaded movable cabinet
Packing: 15 sets/carton
Or as per requested
Sample Rules:
1. Free samples can be sent within 5 working days.
2. Shipping method: By DHL, UPS or as per requested.
3. Payment method: freight to be collected by the receiver.
Port of departure: Shenzhen, Guangzhou
Features:
1. Capable of dual-direction sliding
2. Inseparable

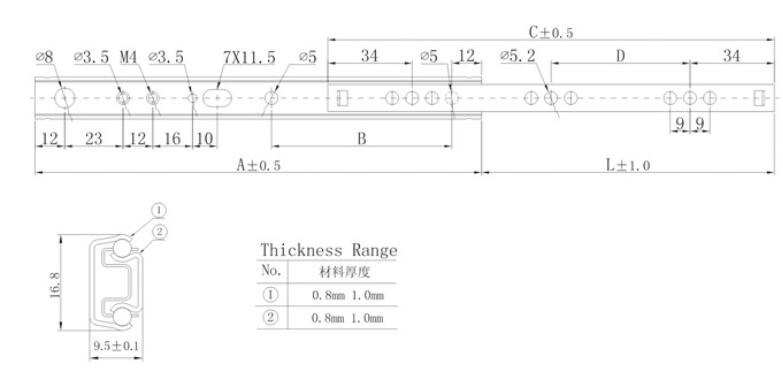

Specification for KM1701:
| MODEL NO. | A | B | C | D | L |
| KM1701-250 | 250 | | 250 | 91 | 179 |
| KM1701-300 | 300 | | 300 | 116 | 206 |
| KM1701-350 | 350 | | 350 | 141 | 256 |
| KM1701-400 | 400 | 200 | 400 | 166 | 306 |
| KM1701-450 | 450 | 225 | 450 | 191 | 333 |
Specification for KM1702:
| MODEL NO. | A | B | n | C | L |
| KM1702-182 | 182 | 182 | 4 | 128 | 111 |
| KM1702-214 | 214 | 214 | 5 | 160 | 143 |
| KM1702-246 | 246 | 246 | 6 | 192 | 175 |
| KM1702-278 | 278 | 278 | 7 | 224 | 184 |
| KM1702-310 | 310 | 310 | 8 | 256 | 216 |
| KM1702-342 | 342 | 342 | 9 | 288 | 248 |
| KM1702-374 | 374 | 374 | 10 | 320 | 280 |
| KM1702-438 | 438 | 438 | 12 | 384 | 344 |
FAQ:
Q: Is your company a manufacturer or a trading company?
A: We are both manufacturer and trading company, so we can offer one-stop service.
Q: We are insterested in your products, how can you send your samples?
A: Samples can be provided for free, but courier freight has to be collected by your side, and usually
we need 3-5 working days to prepare & deliver the samples.
Q: How can you ensure the product quality?
A: Our QC team will check the products in each operation process, defective goods will be disposed
at once, that's why we can ensure that each product from us will be the best quality.
Q: How long can you deliver the products?
A: Normally it takes 20-25 days once order confirmed.
COMPANY SERVICE:
1. Pre & after sales technical support service provided, to ensure each customer have excellent experience
during the whole journey.
2. Normally free samples can be couriered within 5 working days by express service (such as DHL, UPS etc,
or as per clients' request), express freight to be collected.
3. All the products have to be checked by QC team before delivery to ensure its high quality.
4. Customized services are avaiable, such as: export packing size/material, label sticked etc.
5. OEM service is available.
6. Shipping solution provided-- we have professional freight forward team who can provide you the most
economical shippinig mode from China to your appointed place.
